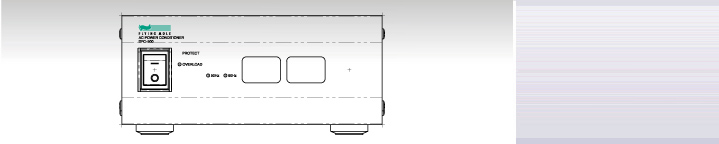

DPC-500

Feature

DPC Power Conditioners are Power Regenerators, not only Voltage Stabilizers.
It supports optimum performance on all quality equipment.
Maintains stable AC Voltage Output 230V }10% even if the line fluctuates between AC230V +10%/-20%.
Clean Power Re-generator offers the Pure Sine Wave AC Power (Distortion less than 1%) with full isolation from Noisy Main Power Line.
Pure AC Power rescues Audio/ Video Signal deterioration or Control system trouble due to highly distorted and noisy Power Supply.
Sophisticated Multi-layer Protection Circuits maximizes Operation Safety and Reliability of connected products / systems.
  • Excessive Current, Surge Voltage, Over Load and Thermal Protection Circuits built-in.
  • Multi-step Forced Cooling System automatically selects adequate amount of fan cooling.
Ultra Compact , Light Weight & Highly Efficient.
Efficiency Higher than 90% at rated Power Output
Slim in 2U (90mm, 3-1/2") Height,with detachable Standard EIA Rack mount adaptor
Compact Half Size : 215 x 88 x 370mm
Light Weight 6kg
Various clean power requirements
500VA Single Clean Output Minimizing interference between
the group of products

Specification

Rated Power Capacity 500VA
Rated Output
Voltage : 230V
Less than }1.0%
Output Frequency : 50Hz/60HzHz Less than }1.0%
AC Outlets

Total Clean power(Switched) 1 : 500VA Total

Weight 13 lbs 3oz (6kg)
Dimensions (WxHxD) 215 x 88 x 370mm
8-7/16" x 3-7/16" x 14-9/16"
AC Power Cable Detachable with Stopper
